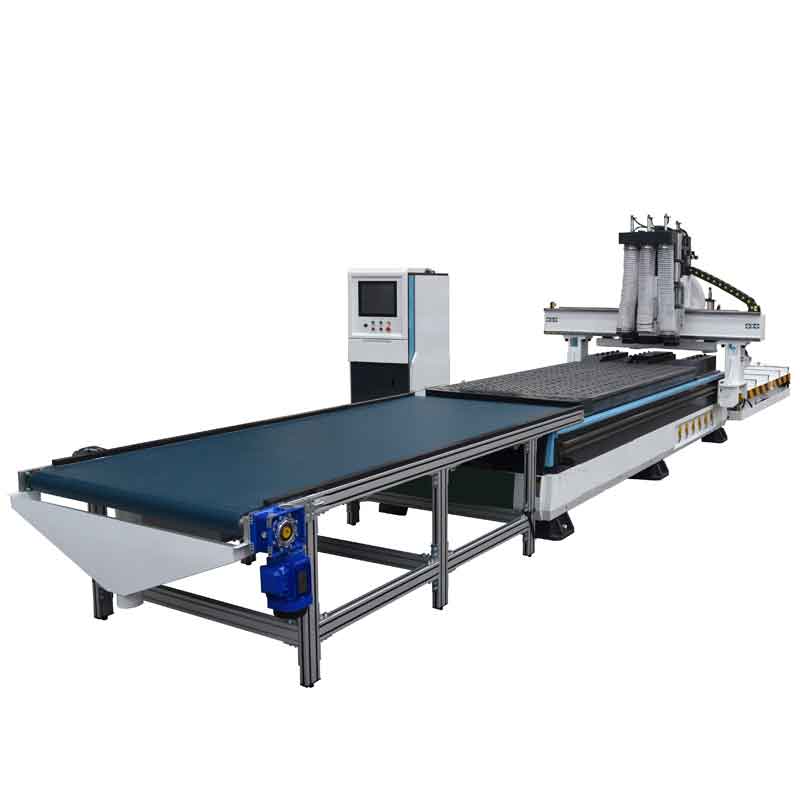

Automatic Loading and Unloading CNC Cutting Center
Function: Automatic loading and unloading, cutting, drilling, grooving, engraving and routing. Consecutive process make a maximize production efficiency.
Advantage: 1. Automatic loading and Unloading, work table cleaning, lubrication and knife device, which bring a highefficiency
2. Module design. Several knife modules are available.
3. Professional appearance and structure design and high precision CNC processing
4. Domestic and imported CNC system, which has a stable performance.
5. Operate easily and only a simple training is needed
6. Automatic knife changing device is available
| Function | Auto loading and unloading, Dilling Holes, Grooving, Cutting | ||||
| X,Y,Z Working Area | 1300*2500*200mm | ||||
| Max. Working Speed | 13000 mm/min | ||||
| X,Y,Z Repositioning Accuracy | ±0.05mm | ||||
| Software Compatibility | Artcam, Type 3, CAD, CDR and so on | ||||
| Command Language | G Code, u00, mmg,plt | ||||
| Software Operating System | Windows98/2000/XP/WIN7 32bit | ||||
| Machine Frame | Big Steel tube structure | ||||
| Machine body Material | Integral steel structure | ||||
| Machine Table | Vacuum adsorption, Doble layer table, 7.5kw water cooling | ||||
| Control System | Syntec/Taiwan | ||||
| Main Spindle |
Jiangsu Changzhou HQD 6kw air cooling * 1, Jiangsu Changzhou HQD 4.5kw air cooling * 3 |
||||
| Reducer | Japan SHIMPO | ||||
| Drive motors | Servo, DELTA Taiwan | ||||
| Driving Method |
X Y High precision helical rack drive, Wuxi Xinyue Z Screw drive, Taiwan TBI |
||||
| Inverter | Shanghai Fuling Electric | ||||
| Guide | Straight square rail CSK 25 or Taiwan Shangyin | ||||
| Maintenance | Automatic oiling system | ||||
