Type
|
SYX-420-4K
|
|
Bag length
|
40-200mm(L)
|
|
Bag width
|
15-70mm(W)
|
|
Max width of roll film
|
420mm
|
|
Packing speed
|
30-50bags/min/lane
|
|
Air pressure
|
1.5m³/min 6KG
|
|
Power voltage
|
AC single phase 220V / 50/60HZ
|
|
Power
|
3.5KW
|
|
Dimension
|
(L)1100mm×(W)990mm×(H)2100mm
|
|
Machine weight
|
500Kg
|

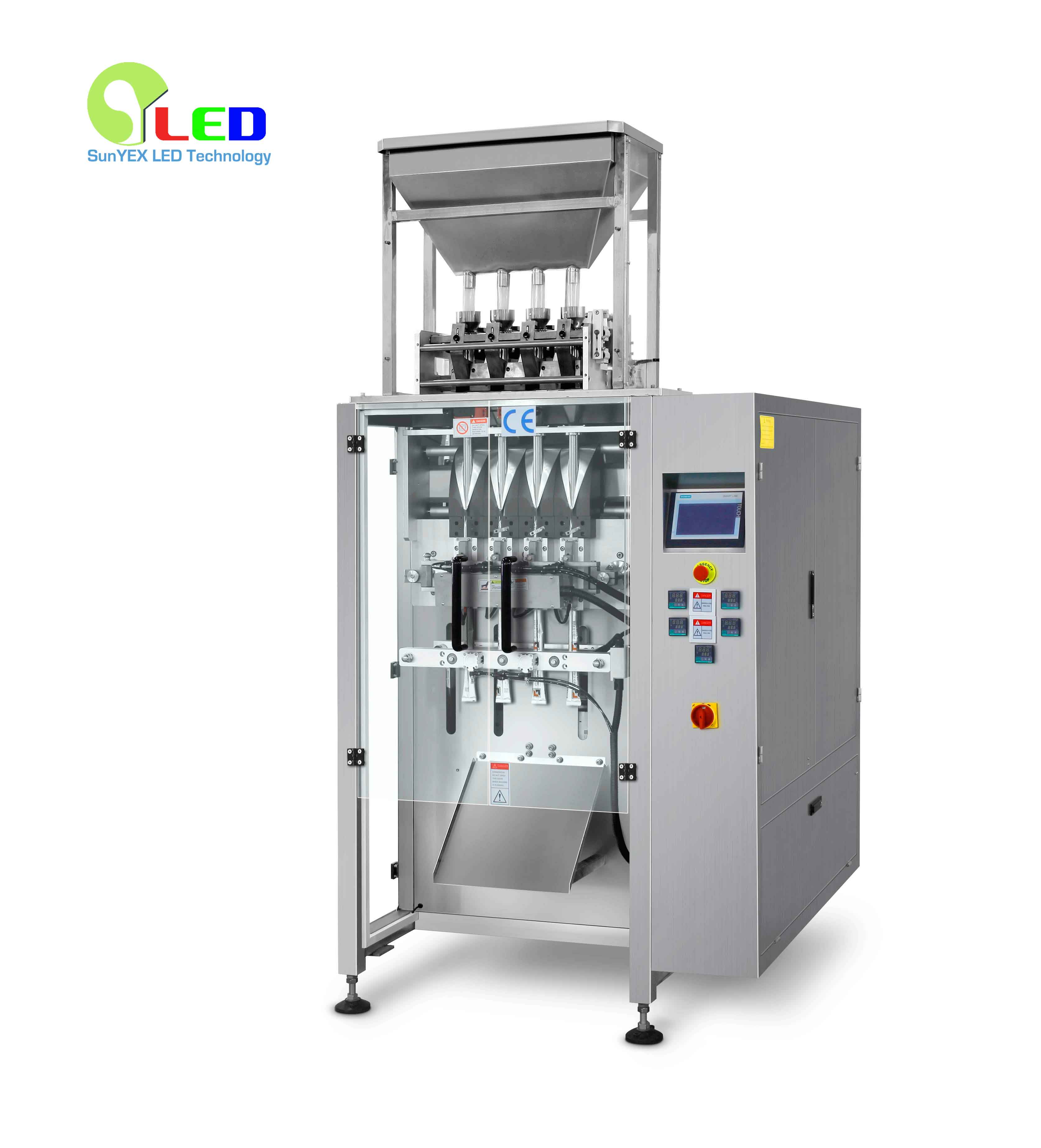

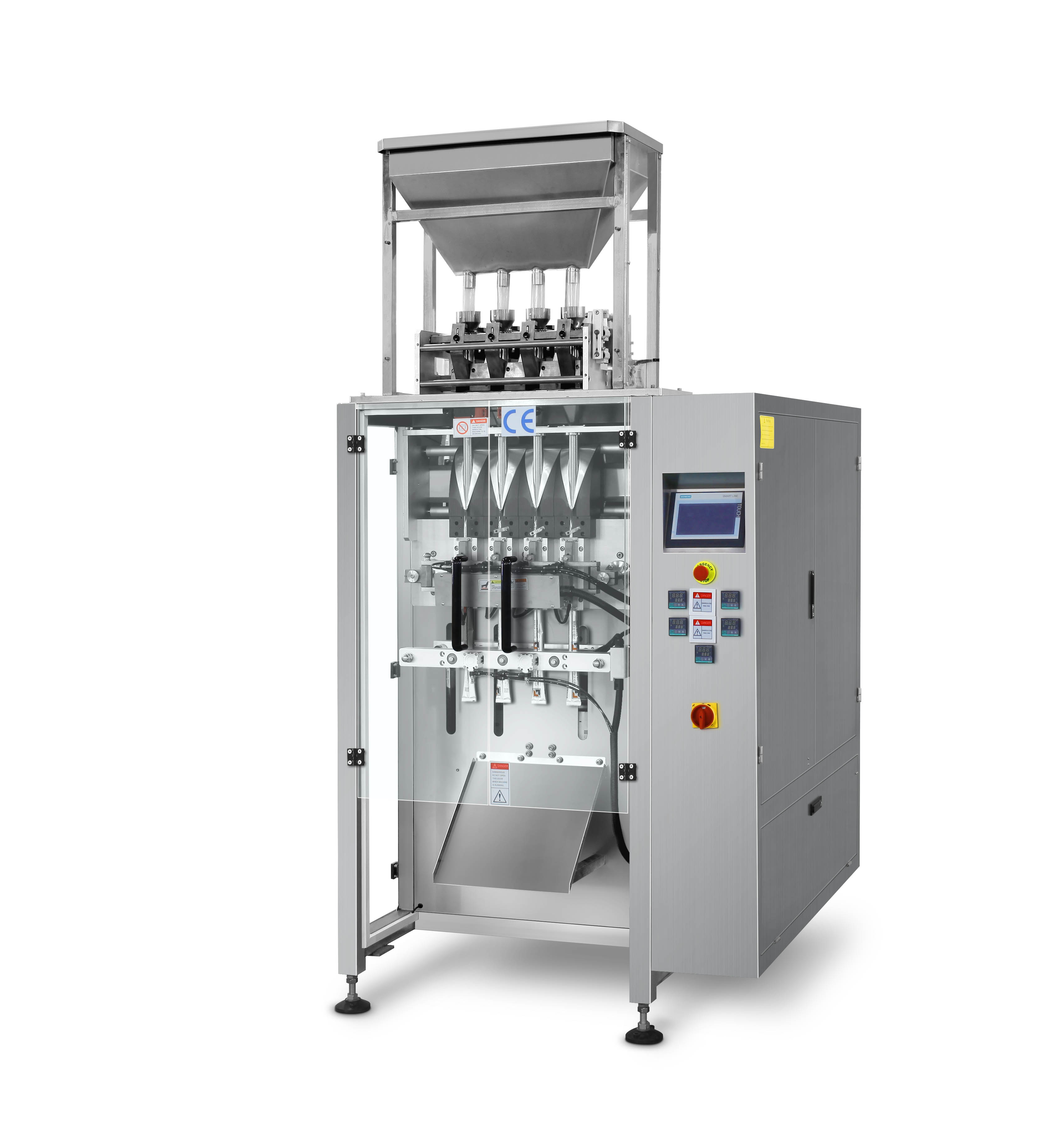

Machine with advanced technology, beautiful appearance, reasonable structure, stable performance, precise operation, efficient and durable, easy to operate, energy saving and other diversified quality characteristics. Set of measuring, bag making, filling, sealing, cutting, testing, coding, counting, transport and other processes in a fully automatic multi-functional packaging machine.
Machine manually using man-machine interface, automatic detection and alarm system program, application imports PLC, cylinder, optical, touch screen, temperature controller, frequency converter, relays, servo motor, high quality power supply circuit.
Technical characteristics:
1. Hopper can easy to take apart and wash;
2. Servo motor and servo driver control the auger;
3. Whole part is 304 stainless steel cover;
4. Equipped with the handwheel to adjust the height of machine.
(Customized part depend on the lanes and weight)
Technical parameter:
|
Model
|
SYX-4L
|
|
Filling Weight
|
1-20g
|
|
Filling Accuracy
|
±0.1-0.6g
|
|
Filling Speed
|
10-20 bags/min
|
|
Power Supply
|
Single phase AC220V 50Hz
|
|
Total Power
|
2.22KW
|
|
Total Weight
|
90Kg
|
