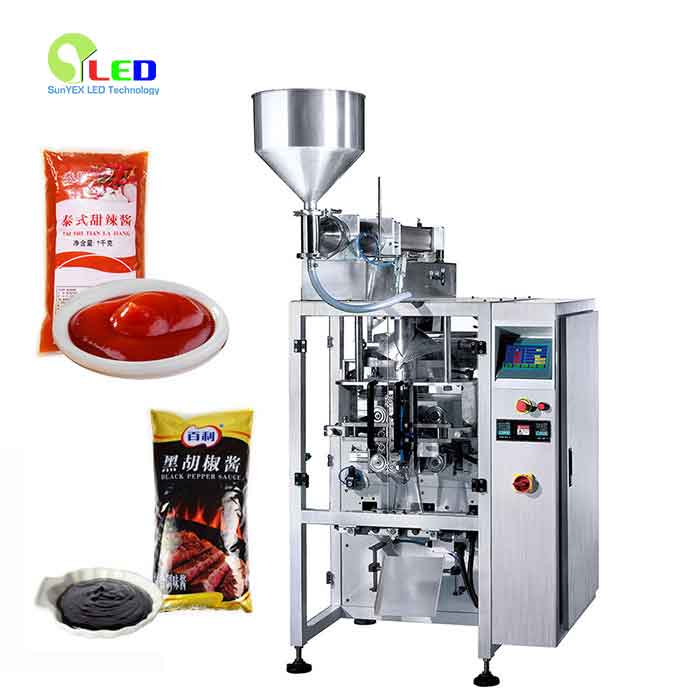

Features：Application: Suitable for many kinds of liquid, such as: milk, oil, shampoo, sauce, jam, etc.
Technical characteristics:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.
4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to 1 centigrade.
6. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag-making, sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Application:
Suitable for many kinds of liquid, such as: milk, oil, shampoo, sauce, jam, etc.

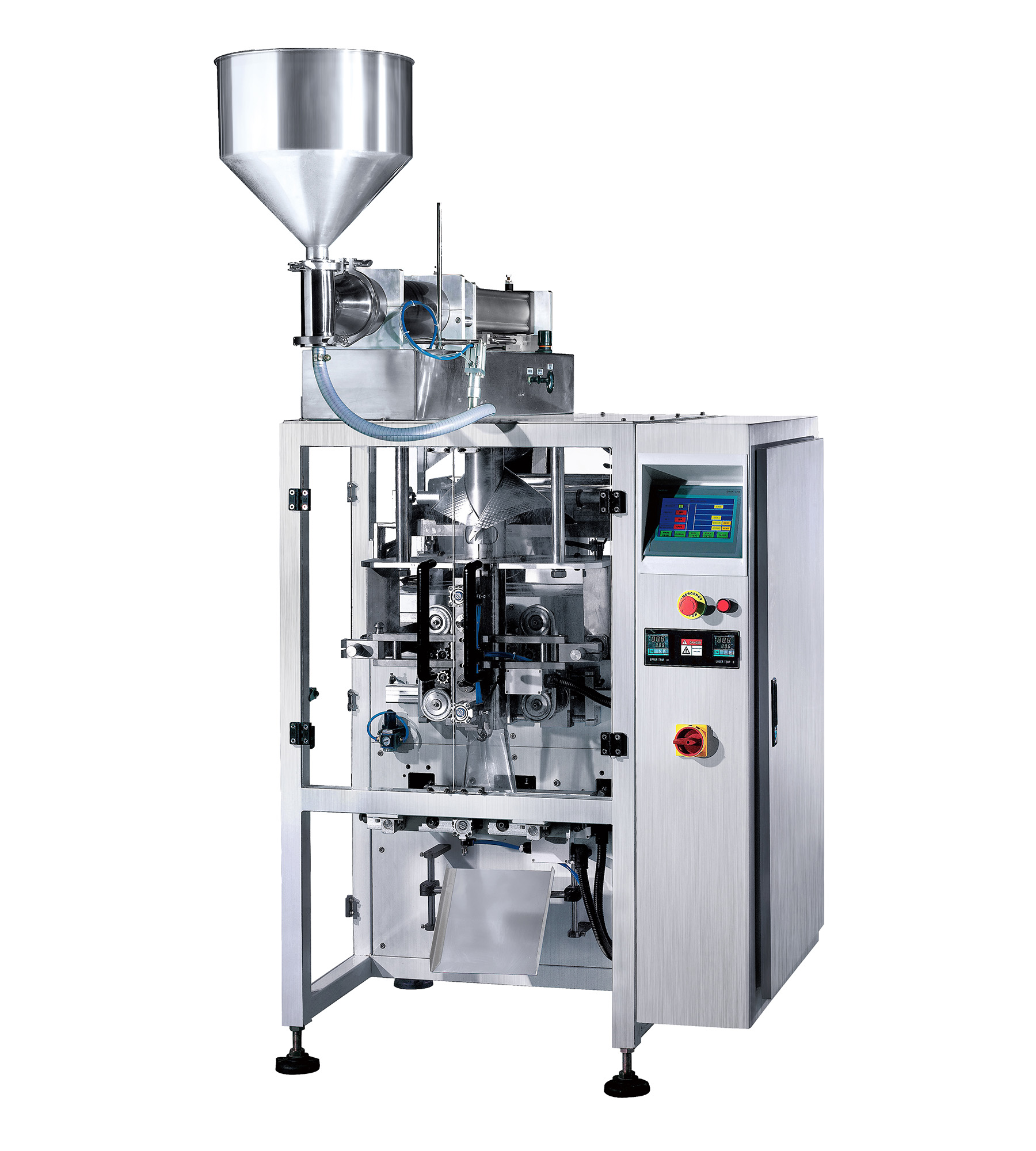

Technical parameters of SYX-520:
|
Type |
SYX-520 |
|
Bag length |
80-350mm(L) |
|
Bag width |
60-250mm(W) |
|
Max width of roll film |
520mm |
|
Packing speed |
8-30bags/min |
|
Measuring range |
3000ml |
|
Air consumption |
0.65mpa |
|
Gas consumption |
0.4m³/min |
|
Power voltage |
220VAC/50HZ、60HZ |
|
Power |
3KW |
|
Dimension |
(L)1500mm*(W)1170mm*(H)1500mm |
|
Deadweight of machine |
540Kg |
SYX-W Water pump (design for liquid product)
Technical parameters:
|
model |
SYX-W |
|
Accuracy |
0.5 percentage |
|
Power |
220V/50HZ,60HZ |
|
Operate type |
Electric motion / Pneumatic |
|
Weight |
80KG |
|
Machine size |
1150mm(L)*550mm(W)*800mm(H) |
