Features：Application: The classification of food, frozen food, coffee beans, oats, sugar, salt (film), rice, pet food, puffed food, peanut, popcorn, nuts, seeds, hardware etc.
Technical parameters:
|

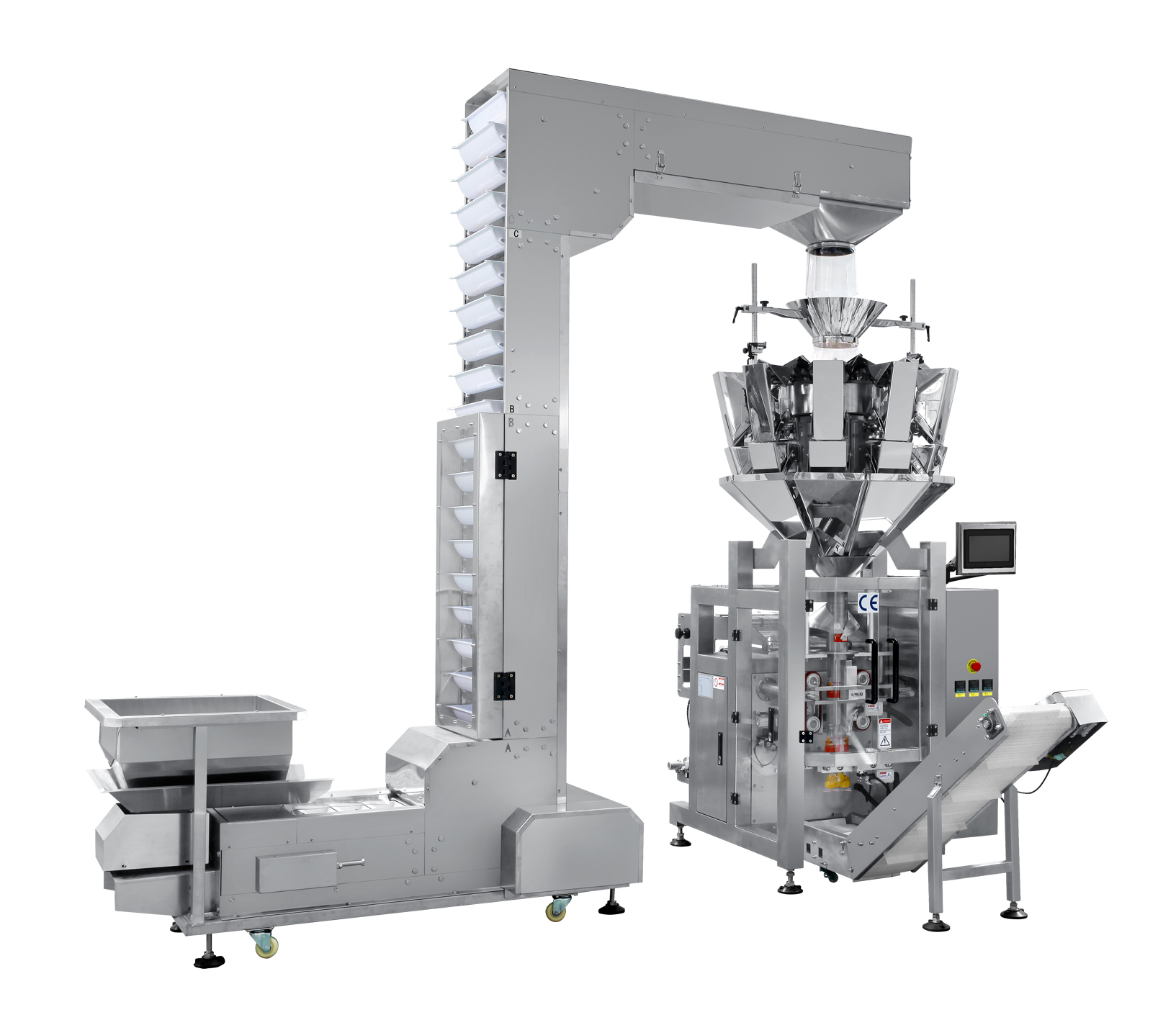

Type |
SYX-400W |
||||||
|
Control system |
PLC+English interface |
||||||
|
Packing speed |
5-60 bags/min |
||||||
|
Display |
7 inch touch screen |
||||||
|
Weigher type |
10/14 heads |
||||||
|
Weighing hopper volume |
1.3L/2.5L |
||||||
|
Weighing accuracy |
±0.5-1.5g |
||||||
|
Single weighing range |
10-800g//20-1500g |
||||||
|
Pillow bag size |
|
||||||
|
Stand bag size |
|
||||||
|
The max. roll film width |
420mm |
||||||
|
Type of sealing |
Pillow bag, standing bag |
||||||
|
Packing material |
OPP/CPP,OPP/CE,PET/PE, etc |
||||||
|
Measuring range |
30-1200ml |
||||||
|
Gas consumption |
0.3m3/min |
||||||
|
Air consumption |
0.65mpa |
||||||
|
Film pulling driven system |
Servo motor |
||||||
|
Horizontal sealing driven system |
Cylinder / Servo motor |
Application:
The classification of food, frozen food, coffee beans, oats, sugar, salt (film), rice, pet food, puffed food, peanut, popcorn, nuts, seeds, hardware etc.
Technical Characteristics:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple.
6. Close down type mechanism , defending powder into inside of machine.
