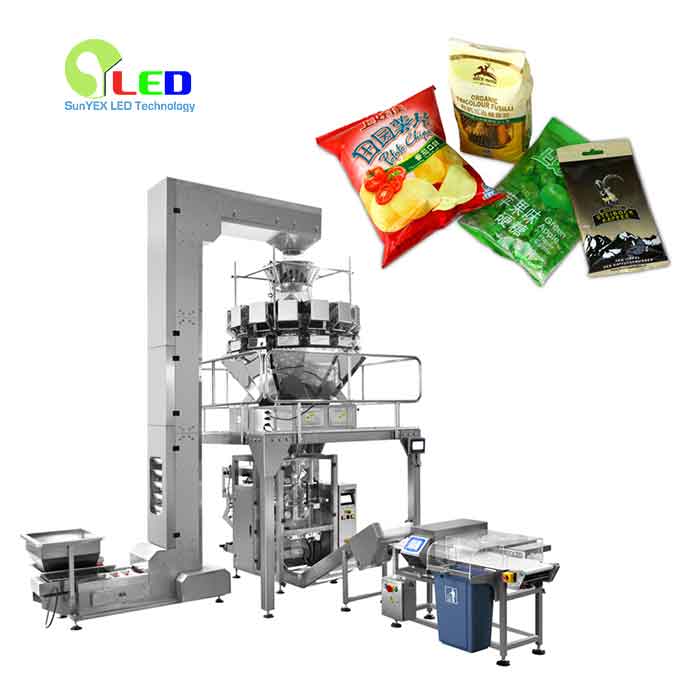

Features：SYX-460W Food packing line with multi-head weigher
Suitable for packaging many different kinds of products; such as tea, puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware, dumplings, vegetable, fruits and sugar etc. which shape is roll, slice and granule.
Technical characteristics:
1. PLC control with stable，reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Servo control, high precision orientation, size more nicety.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
6. Close down type mechanism, defending powder into inside of machine.
Technical Parameters:
|
Type |
SYX-460 |
|
Bag length |
100-400mm(L) |
|
Front bag width |
75-180mm(W) |
|
Side width |
40-80mm |
|
Width of roll film |
5-10mm |
|
Max width of roll film |
460mm |
|
Packing speed |
10--60bags/min |
|
Measuring range |
3000ml(MAX) |
|
Air consumption |
0.65Mpa |
|
Gas consumption |
0.4m³/min |
|
Power voltage |
220VAC/50HZ |
|
Power |
5.5Kw |
|
Dimension |
(L)1500×(W)1220×(H)1800mm |
|
Deadweight of machine |
1200KG
|
