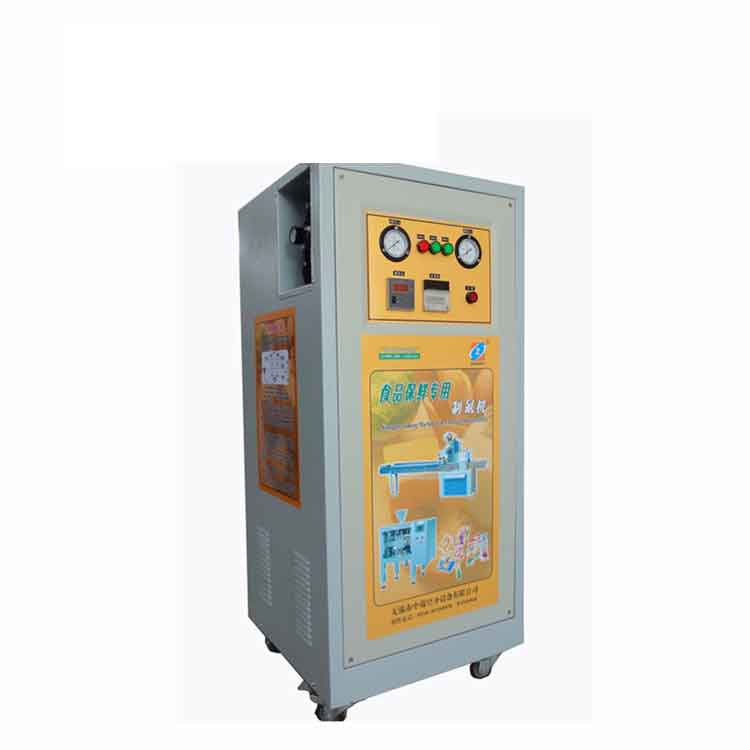

Features：SYX-R5 Nitrogen Generator
(1) Main Characters
*The equipment adopts the brand-newly designed filling technique and the service.
*Special bypass design ensures lower energy consumption and higher yielding results.
*Computer-aided operation with the simple technical design makes for easy maintenance of the equipment.
* In addition, such equipment has compact structure, which can be easily moved because of small volume.
(2) Technical Parameters
|
Items |
Content |
|
Nitrogen Capacity |
5Nm³/h |
|
Power |
5KW |
|
Nitrogen Purity |
99.5-99.9%% |
|
Dew Point |
≤-38℃ |
|
Air Source Pressure |
0.8-1.0Mpa |
|
Nitrogen Pressure |
0.1-0.65Mpa(adjustable) |
|
Dimensions |
590×570×1230mm(L×W×H) |
|
Voltage |
220V/1Ph/50HZ |
|
Weight |
150kg |
