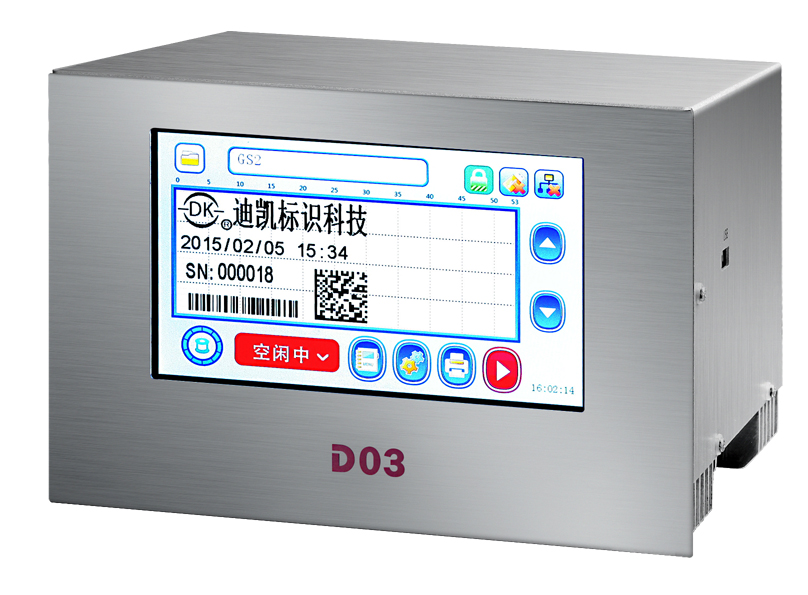

Features：Packing Machine Code Printer
Technical Parameters:
|
|
D01/D03 intermittent |
D01/D03 Continuous |
D05 intermittent |
D05Continuous |
||
|
Print head |
32mm 300DPI |
53mm 300DPI |
||||
|
Print area |
32×80mm(W×L) |
32×80mm(W×L) |
53×80mm(W×L) |
53×150mm(W×L) |
||
|
Max length of ribbon |
650mm |
|||||
|
Max width of ribbon |
22mm-33mm |
25mm-35mm |
||||
|
Print speed |
D01: 35 Meter/minute D03: 40 Meter/minute D01：35m/min D03：40m/min |
40 Meter/minute 40m/min |
||||
|
Interface |
USB |
|||||
|
Power supply |
AC100-200V±10V,50/60HZ |
|||||
|
Power |
150W |
300W |
||||
|
Environmental operating tempreture
|
0-40 ℃ |
|||||
|
Relative humidity |
10%-90% （No Condensing）10%-90% |
|||||
|
Air supply |
6bar/90Psi(Max), Dry, No Pollution |
|||||
|
Weight |
Printer Unit 8.5kg, Controller Box 2.0kg
|
Printer Unit 8.5kg, Controller Box 2.0kg
|
||||
|
Dimension of printing unit |
188×190×180mm(L×W×H) |
210×210×185mm(L×W×H) |
||||
|
Dimension of controller box |
175×235×170mm(L×W×H) |
175×235×110mm(L×W×H) |
||||
