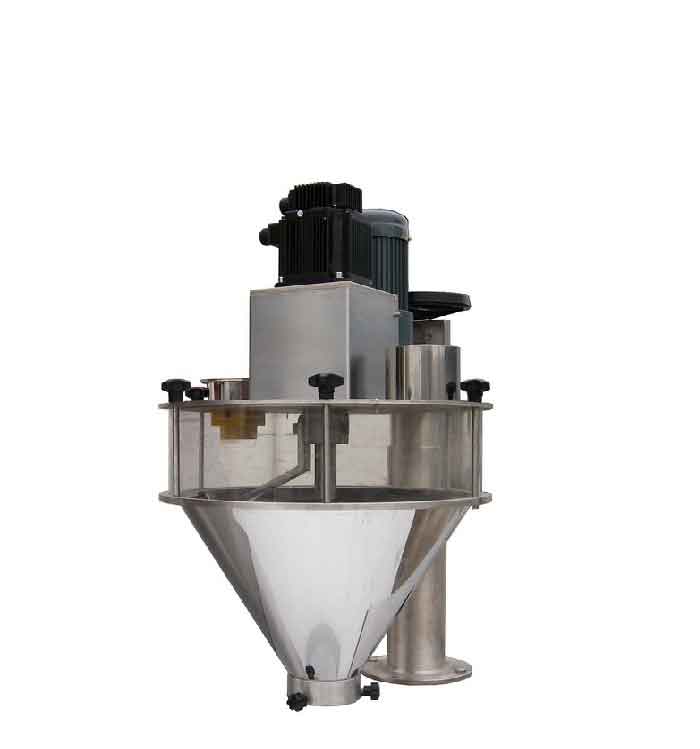

Features：SYX-8 Auger filler
Technical parameters:
|
Type |
JT-30L |
JT-50L |
|
Hopper |
30L |
50L |
|
Packing weight |
1-500g |
10-5000g |
|
Packing accuracy |
<100g ±2%;100-500g ±1% |
<100g,±2%; 100-500g,±1% <5000g, ±0.5% |
|
Filling speed |
40-120次/分40-120time/min |
40-120次/分40-120 time/min |
|
Power supply |
3P AC 208-415V 50/60HZ |
3P AC 208-415V 50/60HZ |
|
Total power |
1.7kw |
1.9kw |
|
Total weighr |
130kg |
200kg |
|
Overall dimension |
860×460×880mm |
1060×600×1100mm |
Main features:
1. The hopper could be washed easily without tools
2. Servo motor drive screw
3. Stainless steel structure
4. Include handwheel of adjustable height
5. Replacing the auger parts, it is suitable for material
6. from super thin powder to granule
