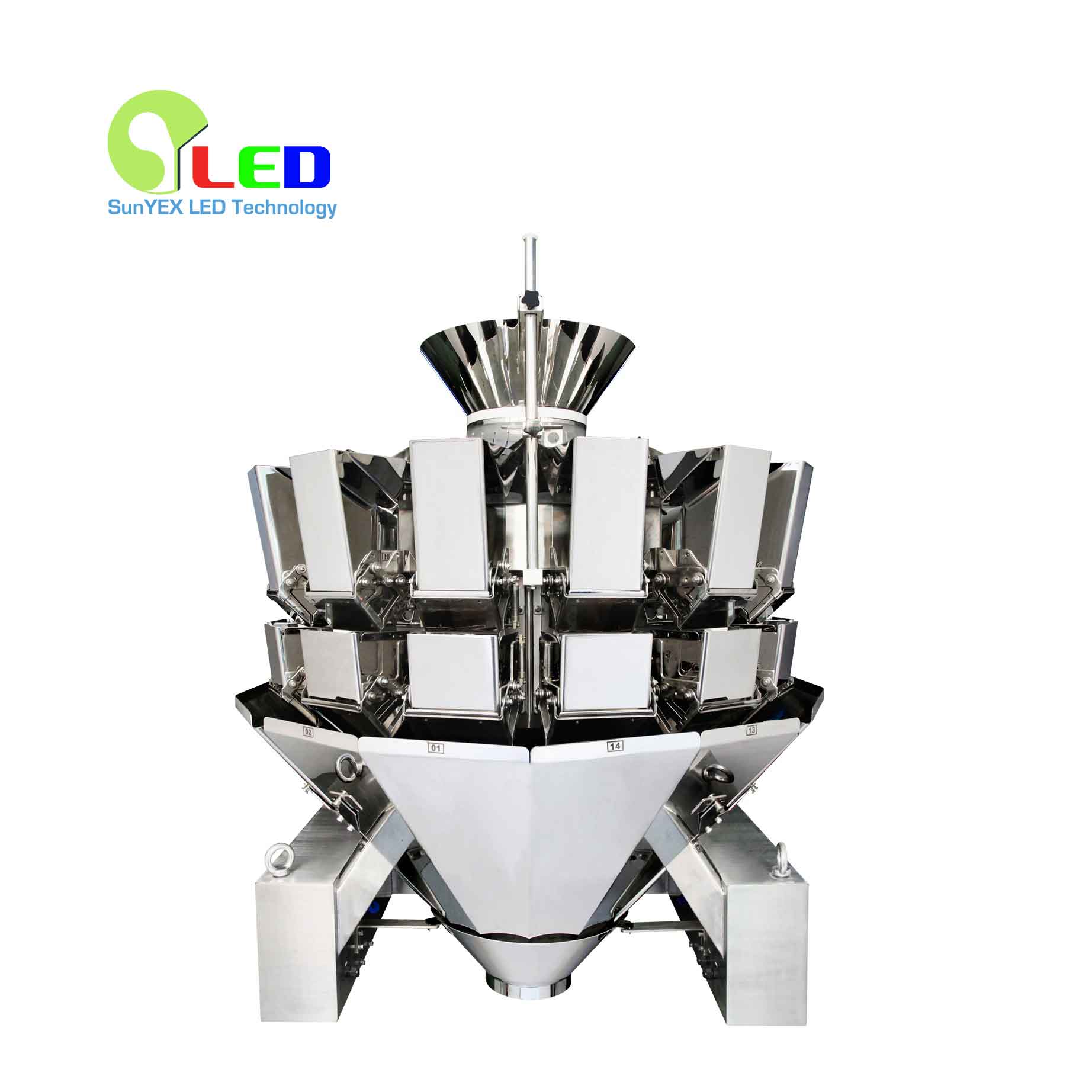

Features：SYX-14 heads1
Technical parameters:
|
Model |
SYX-14 |
|
Max. Single Dump Cap. (g) |
10-3000g |
|
Weighing Accuracy |
0.1-2g |
|
Max. Weighing Speed |
65WPM |
|
Weigh Hopper Volume |
1300ml |
|
Control panel |
10.4 LCD Touch Screen (EVIEW) |
|
Options |
Dimple Plate/Timing Hopper/Printer/Rotary Top Cone |
|
Driving system |
Step Rotor |
|
Power Requirements |
220V/50/60HZ 10A/2000W |
|
Packing Dimension(mm) |
1620(L)*1100(W)*1100(H) |
|
Gross/Net Weight(kg) |
420/400kg |
Application:
It is suitable for weighing of small granule material such as candy, seed, coffee bean, peanut etc.
Main features:
1.Program recovery function can reduce operation failure;
2.All the hoppers can be opened make cleaning easy and quick;
3.The weigh hopper can be preset to open in order (staggered) to avoid blockages with puffy or problem products;
4.IP65waterproof and dustproof design, which is easy to clean and maintain.
5.Multilanguage control panel, Spanish, Korean, German, French and Arabic, etc.
6.The function of measurement by counting pieces or component to satisfy your various requirements.
